Description

MODEL A B C D E Track Roller Qty   Dynamic Bearing(kg) Static Bearing(kg) Dead Weight(kg) Reduction Ratio Travel Speed(Km/h)
FHST-5 900 1100 300 780 142 3+3 500 800 330 * 2
FHST-8 950 1250 300 900 142 3+3 800 1200 380 * 2
FHST-15 1070 1420 370 1100 180 3+3 1500 2000 420 * 4
FHST-30 1400 1740 370 1100 180 4+4 3000 4000 570 * 3
FHST-35 1500 2030 485 1800 225 4+4 3500 4000 750 53.7 2/3.2
FHST-60 1950 2467 549 1700 240 5+5 6000 7000 1350 53.7 2/3.7
FHST-80 2265 2783 548 1800 255 8+8 8000 9500 1830 53.7 2.8/4.7
FHST-100 3200 3800 600 1700 280 9+9 10000 11300 2350 53.7 3/5.1
FHST-120 2575 3282 720 2000 345 9+9 12000 15000 2950 54 2.9/4.9
FHST-150 2923 3666 753 2000 360 8+8 15000 18000 3300 53.7 3.2/5.5
FHST-200 3323 4065 786 * 375 8+8 20000 25000 4300 58 3.5/5.4
FHST-300 3730 4530 836 * 405 9+9 30000 37000 6500 66.4 2.5/4.6
FHST-400 4090 4888 880 * 420 10+10 40000 48000 7100 70.1 2.3/4.3
The above dimensions are performance parameters are for reference only, it can be configured according to customers' specific demand.
Note: We can provide the following products value-added service
■ 1: Independent development of domestic quantitative traveling motor or imported double speed motor can be freely selected.
■ 2: Dimensions can be customized according to specific requirement.
■ 3: Automatic rotary and manual rotation mechanism can be added.
■ 4:Steel crawler chassis of all kinds of curved bridge angle are available.

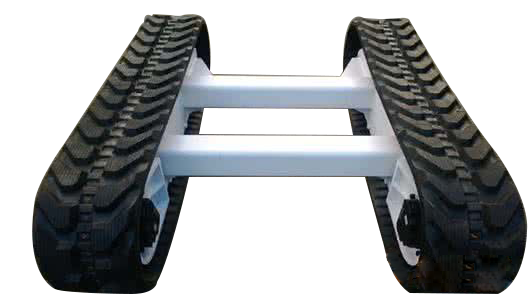

■ 5:Rubber shoes for steel track are available to protect the road.
Application
Drilling Rig: Anchoring Drill, Water Well Drilling Rig, Core Drilling Rig, Jet Drilling Rig, Down-Hole Drill, Crawler Hydraulic Drilling Rig, For Poling Rig, Trenchless Drill Etc….
Mechanical Engineering: Excavator, Small Pile Driver, Aerial Work Platform, Small Size Loader, Etc…
Coal Mine: Slag Removing Machine, Underground Drilling Rig, Full Hydraulic Drilling Rig, Hydraulic Drill Carriage and Rock Loading Machine, Etc…
Mine: Movable Crusher, Heading Machine, Coveying Equipment, Etc…..
Agricultural Equipment: Cane Harvester, Iawn Mower, Ditching Machine, Etc……
