Description

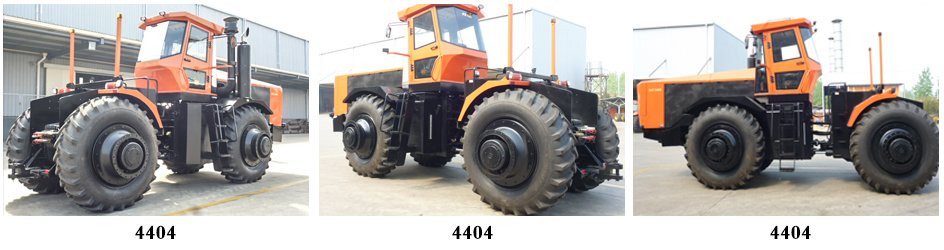

Tractor Series 3604/4404
■ Matching Weichai high pressure common rail diesel engine, turbocharger and inter-cooling, green energy and torque reserve is enough
■ Articulated frame with high rigidity and strength
■ Full hydraulic bending steering with linear electronic control steering.
■ Construction machinery rear axle, big load capacity, caliper disc brake and big brake torque.
■ Hydraulic steering and output use pilot oil line control with easy control, use dual pump converying to combine steering and hydraulic output with five groups of hydraulic output.
■ Comprehensive electronic control system based on main line can be optional. Time, work efficiency, traction and other information can be showed by the LCD screen.
Trype FH3604 FH4404
Engine Power/speed Kw/r/min 265(360)/2100 323(440)/2100
Specific Fuel Consumption g/kw.h ≤196 ≤196
Drive Type / 4*4 4*4
Dimension(L/W/H) mm 7800(with hitch linkage 8100)/(Dual-tires 3740, Three-tires 5100)/4100 7800(with hitch linkage 8100)/(Dual-tires 3740, Three-tires 5100)4100
Wheel Base mm 3911 3911
Track(Front Wheel) mm 1880 One-tire /2546 Double-tire/ 3215 Three-tire 1880 One-tire /2546 Double-tire/ 3215 Three-tire
Track(Rear Wheel) mm 1880 One-tire /2546 Double-tire/ 3215 Three-tire 1880 One-tire /2546 Double-tire/ 3215 Three-tire
Ground Clearance mm 450 450
Min.Running Weight kg 17830 17830
Front Traction Force ≤ kg 800 800
Traction Force kn 77 94
Gear Number / 24F+12R 24F+12R
Gear Forward Speed km/h 2-36 2-36
Gear Reverse Speed km/h 2-23 2-23
Tires Model Front Tires / 20.8-42R1 20.8-42R1
Rear Tires / 20.8-42R1 20.8-42R1
Format of the power-output shaft Type / / /
Speed r/min / /
Max. Pull-down Piston Pull KN 50 50
